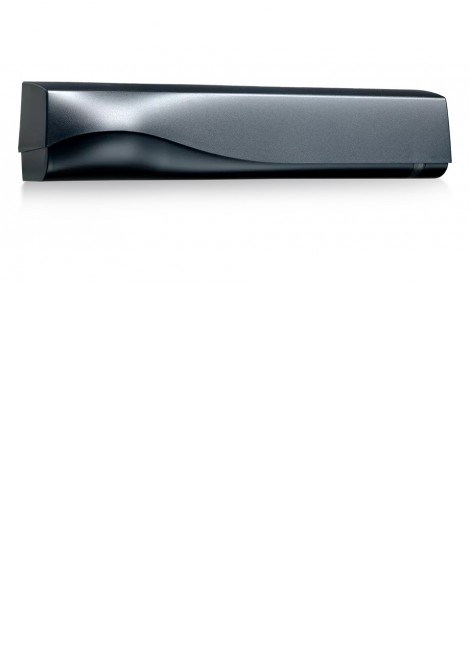

The IXIO-D is a sensor which combines radar technology for the activation of the door with infrared technology for the user protection.  The unidirectional radar enables energy savings to be made.  The three-dimensional infrared curtain protects people from any contact with the doors.

• Due to the unidirectionality, the duration of the door opening cycle in shorter, which reduces heat loss from the building and saves energy.  This also optimises the "airlock" function.
• Safety: 4 red spotlights visible on the ground to adjust the angle of the failsafe curtain
• LCD: intuitive configuration with an LC screen displaying texts and symbols (LC graphics)
• Infrared curtains: 48 high density infrared spotlights from 2 curtains protect users from any contact with the doors.  A 320bit microprocessor optimises the processing of information coming from the environment
• Applicable directives/Norms: R& TTE 1999/5/EC; MD 2006/42/EC, LVD 2006/95/EC, ROHS 2 2011/65/EU, EN 12978, DIN 18650-1:2010 cHPATER 5.7.4, AutSchR. BS 7036-1:1966 Chapter 7.3.2, EN ISO 13849-1q2008PL "c" CAT.2 (under the condition that the door control system monitors the sensor at least once per door cycle), IEC 61496-1:2012 ESPE Type 2, EN 16005:2012 Chapter 4.6.8, BS 7036-1:1996 Chapter 8.1
