Espa

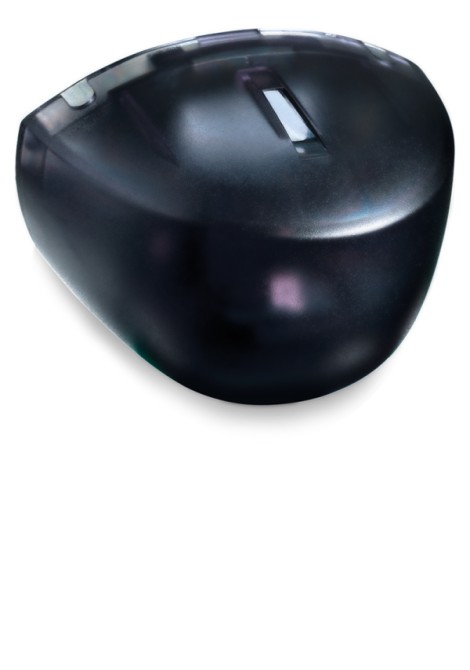

Colibri One

Available
300.00€

 Unidirectional opening sensor for automatic doors.

The sensor can be mounted on all types of automatic doors, irrespective of the surroundings.



  • Adjustable sensitivity settings for creation of customized sensing patterns
  • Lateral angle adjustment for ceiling, wall and low level mount versatility
  • Compact size provides flexibility in mounting
  • Pairs with LED Signal Lights for warning indication application
Transmitter frequency :24.150 GHz
Technology :microwave doppler radar
Detection mode :motion
Min. detection speed :5 cm/s (measure in sensor axis)
Max. power consumption :< 2W
Output :solid-state-relay (free of potential change-over contact)
Max. contact current :100mA
Max. contact voltage :35 V DC/24V AC
Mounting height :from 1.8 m to 3 m
Degree of protection :IP 54
Temperature range :from -20˚C to + 55˚C
Dimensions :80 mm (W) x 60 mm (H) x 55 mm (D)
Tilt angles :0˚ to 90˚ vertical; -30˚ to +30˚ level
Material :ABS & polycarbonate
Weight :140 g
Norm conformity :R&TTE 1999/5/EC;LVD 2006/95/EC
Cable lenght :2.5 m
